4G GPS Truck Vehicle Security MDVR Car Mobile DVR 4 Channel Input H.264 OEM

4G GPS Truck Vehicle Security MDVR Car Mobile DVR 4 Channel Input H.264 OEM

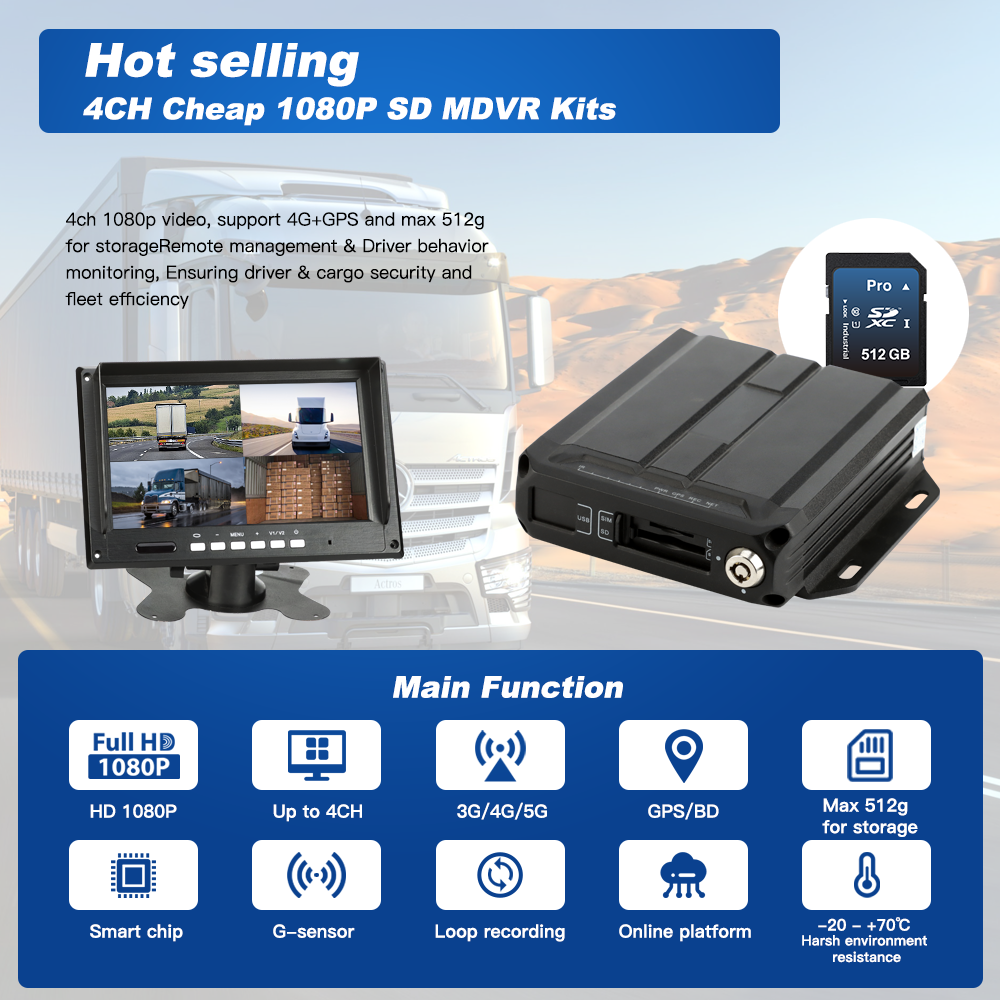

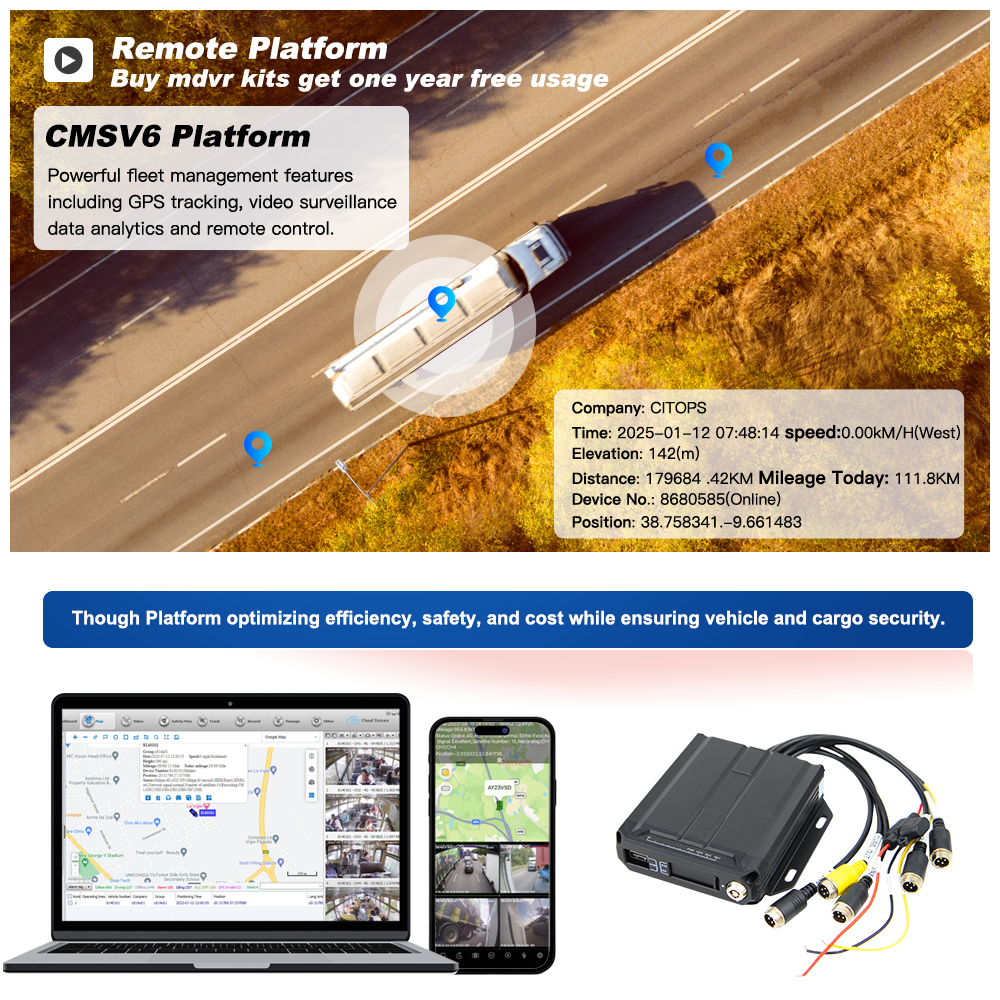

This cost-effective SD card-based mobile DVR supports up to 4 channel 1080p AHD cameras, with built-in 4G and GPS connectivity for real-time remote monitoring via a centralized platform. Ideal for small trucks and commercial fleets, it enhances driving safety and enables managers to monitor driver behavior, prevent cargo theft, and track vehicle locations—allowing efficient remote dispatching and oversight.

Overview
Recommended Products

Specifications

Item			parameters
Audio and Video Inputs	video input	4ch AHD input
Audio and Video Inputs		audio input	2ch audio input channels
Audio and Video outputs	video output	1ch CVBS output
Audio and Video outputs		speech output	1ch Audio output
Audio and video parameter coding	video coding	H.264 Main Profile/H.265
		Resolution	1080P/720P/D1 optional
		audio coding	default G.726,G.711A optional
storage space	SD card	support 1 SD card
wireless network	4G wireless	support 1 SIM card，optional：All the major communication modules in the world
locate mode	BD/GPS	Positioning, speed detection, time synchronization
Interface	USB	1xusb2.0, for data export, upgrade use
		serial port	1 x RS232,optional 1 RS485 , external sensor
		I/O	4 channel input Output 1 channel
		network port	Optional
Physical Specifications	Size	100 mm (L) * 1 20.8 mm (W) * 32 mm (H) (excluding tail)
Physical Specifications		weight	NW：0.6kg GW：0.8kg（Take M15HV-SGNE-L as standard）
work environment	operating temperature	-20〜+70℃
work environment		operating humidity	8%〜90%（No condensation）
Other	operating mode	Remote control, mobile APP, WEB
		Gravity Sensing	Built-in GSensor
		Configurable AI algorithm	Driver identification, people counting, assisted driving, etc.

4G Bus Vehicle Security MDVR Car Mobile DVR 4 Channel Input H.264 OEM details

Detailed Images

4G bus Vehicle Security DVR Support SD Card 128GB Remote

M15hv is a cost-effective and high extendibility mobile digital video recorder (MDVR), developed especially for vehicle monitoring and remote video surveillance. It adopts high speed processor and embedded Linux system, combined with the most advanced technology of H.264 coding or H.265 decoding, 3G/4G network, GPS/BD . It supports 1080p,720p,D1 resolution video recording, vehicle driving record and video remote uploading.
