720p HD Driver Behavior & Fatigue Monitoring Camera (DMS) Custom Language & Interface Custom Driver Alert System for Truck & Bus
- Overview
- Recommended Products
Pruduct Description
🔔 Vehicle Driver Fatigue Monitor Alarm Camera
Built-in algorithms monitor the driver's driving behavior and alert to ensure safe driving
Built-in algorithms monitor the driver's driving behavior and alert to ensure safe driving

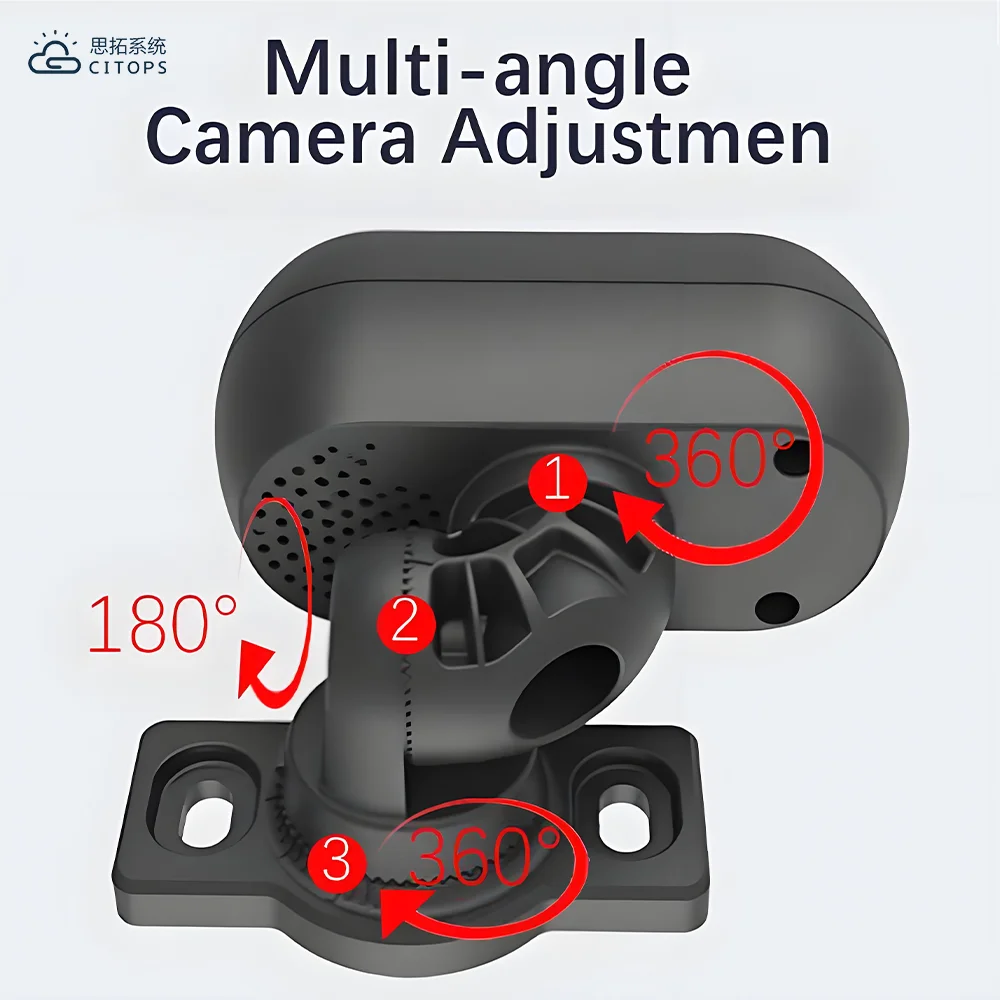

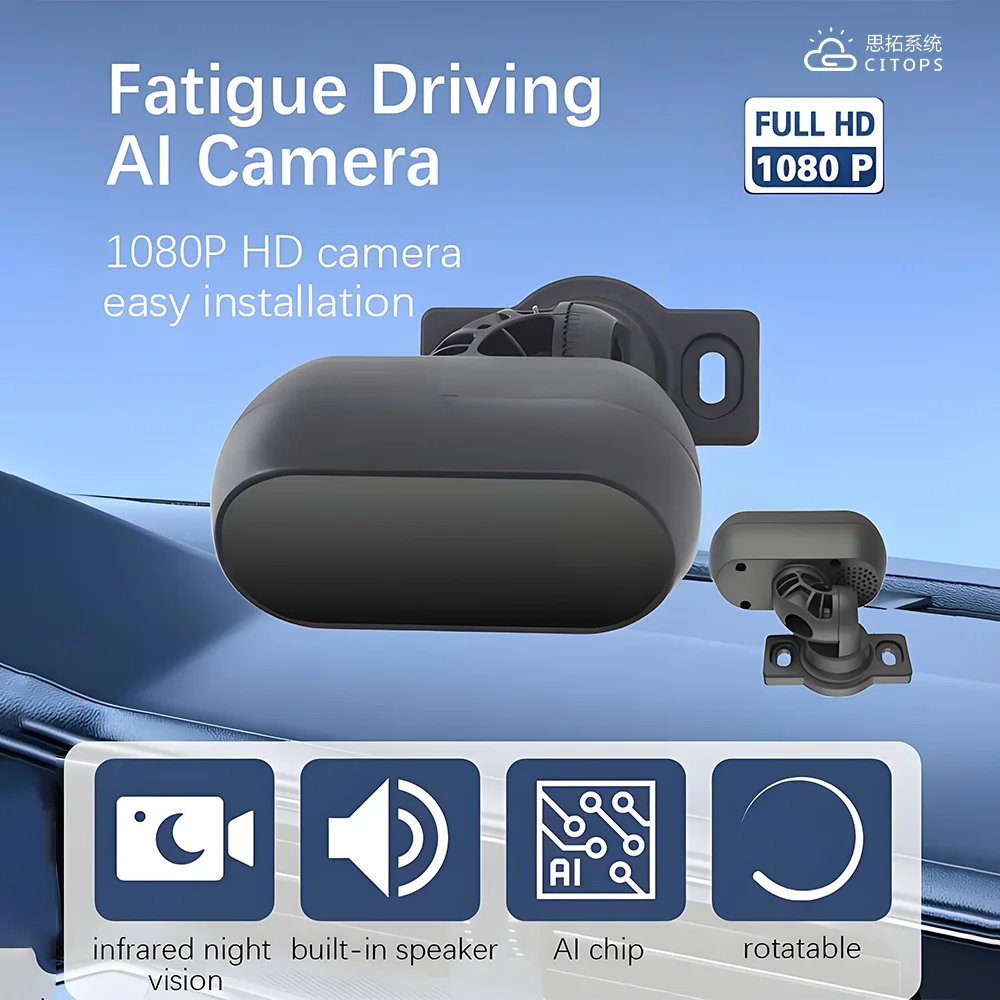

MX-DSMH-839A is a DMS in-cab camera monitors driver fatigue and distraction to improve fleet safety. Featuring 720p/1080p HD resolution, 120°–170° adjustable wide-angle lens, DC 12V power, and customizable interface/language, it is ideal for enclosed vehicle cabins.

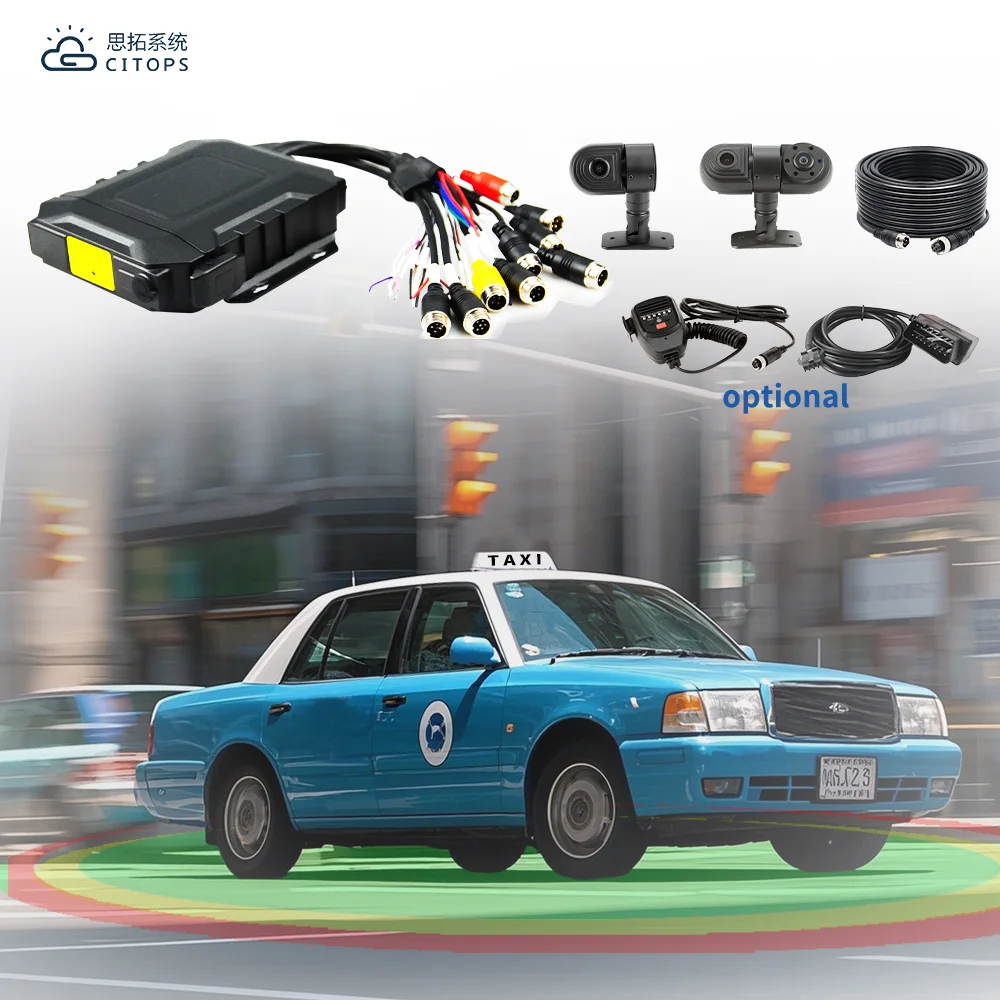

This DMS camera built-in algorithms, can be used individually,If you needs MDVR kits, please contact us for relevant solutions！！！
This DMS camera built-in algorithms, can be used individually,If you needs MDVR kits, please contact us for relevant solutions！！！
🚗 Application Scenarios 🚢

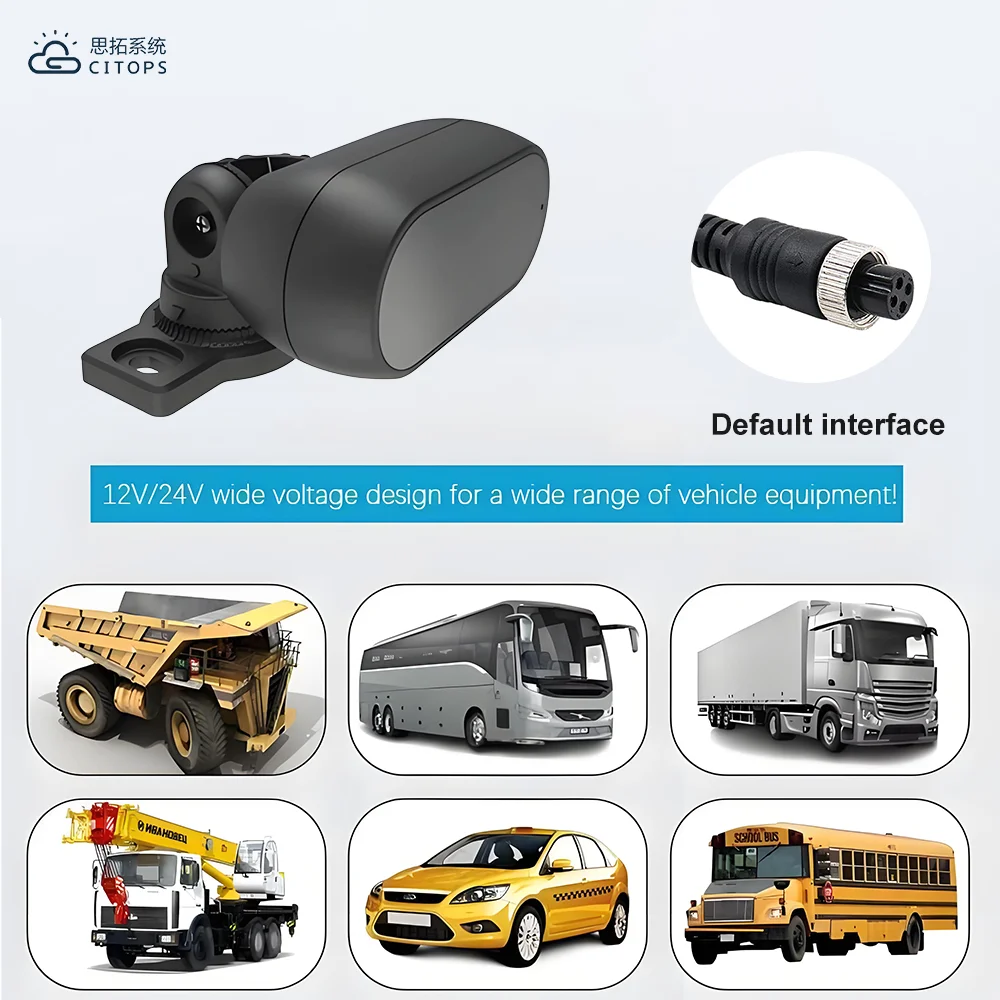

🚌 School Buses – Ensure driver alertness for student safety.🚛 Logistics & Transportation – Reduce liability and improve operational safety.🏗 Government & Public Transport – Compliance with safety regulations.🚐 Fleet Vehicles – Prevent accidents by monitoring driver fatigue in buses, trucks, and delivery vehicles.🚖Taxi & Ride-Hailing – Improve passenger safety with driver distraction detection.
Key Features
✅ Increased Safety
——Reduce accidents caused by drowsy or distracted driving.
✅ Cost Savings
——Minimize fleet downtime and accident-related expenses.
——Minimize fleet downtime and accident-related expenses.
✅ Custom Integration
——Works with your existing MDVR systems and monitoring platforms.
——Works with your existing MDVR systems and monitoring platforms.
✅ Easy Installation

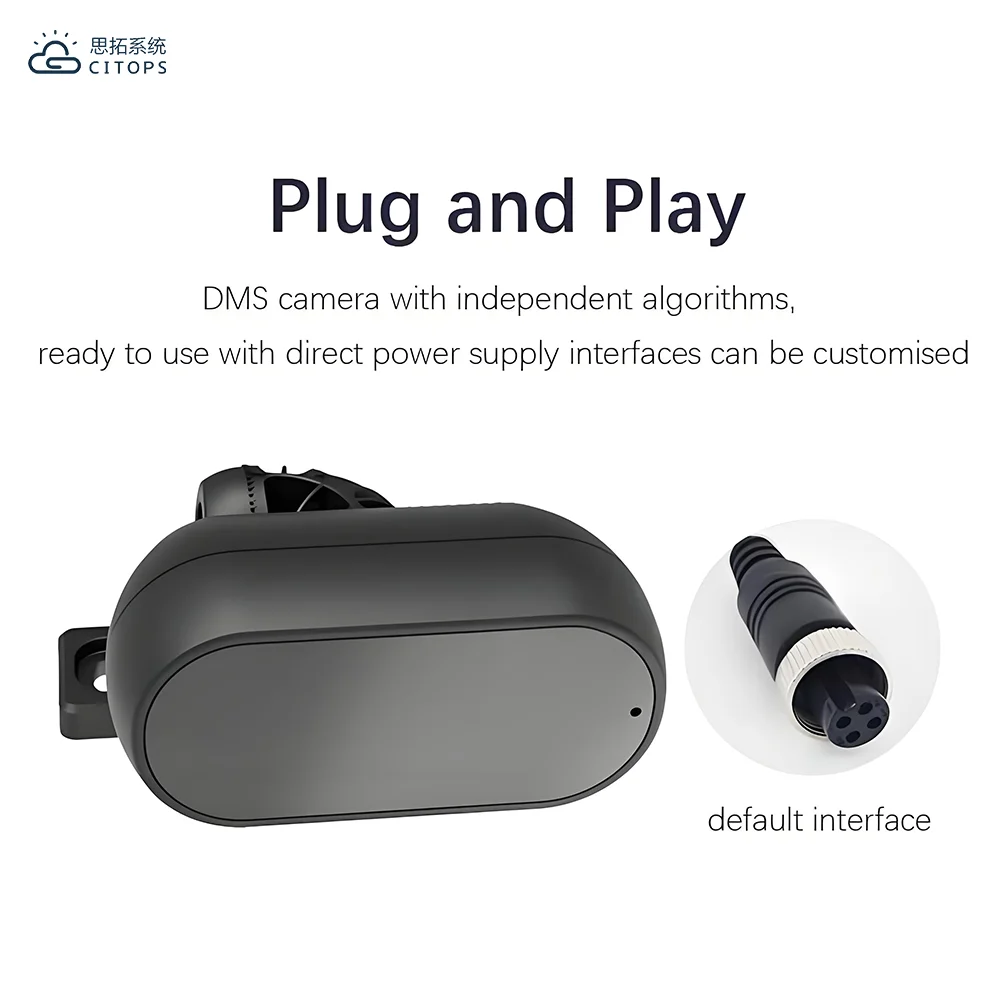

——DC 12V power supply and compact design for quick setup.
——DC 12V power supply and compact design for quick setup.
✅ Global Compatibility
——Multi-language interface options for worldwide deployment.
——Multi-language interface options for worldwide deployment.
Product Paramenters
Category |
Item |
Specification |
Project |
Model |
MX-DSMH-839A |
System |
CPU |
ARM Cortex A7 |
NPU |
0.6TOPs |
|
Sensor |
1/3” CMOS AHD 720P/1080P |
|
Parameters |
Frame Rate |
30fps/25fps |
Standard |
PAL |
|
Effective Resolution |
1280*720 |
|
Effective Pixels |
1MP (100W) |
|
Vertical Sync Frequency |
50Hz / 60Hz |
|
Minimum Illumination |
Color: [email protected] |
|
Video Output |
1.0Vp-p, 75Ω |
|
AGC |
Auto |
|
SNR |
50dB |
|
White Balance |
Auto |
|
BLC |
Auto |
|
Lens |
2.8mm F=2.0 |
|
FOV (Effective Angle) |
55° |
|
Night Vision |
IR Cut (Color→B/W) |
|
Audio |
Supported |
|
Algorithm |
Built-in |
Fatigue Detection (DSM) Algorithm |
Interfaces |
Alarm Output |
1-channel IO (12V) |
Video Interface |
AHD Signal |
|
Power |
Current |
200mA±10% |
Voltage |
DC 12V (±10%) |
|
Others |
IP Rating |
Non-waterproof |
Operating Temperature |
-40°C~70°C, RH≤95% |
|
Storage Temperature |
-30°C~80°C, RH≤95% |
|

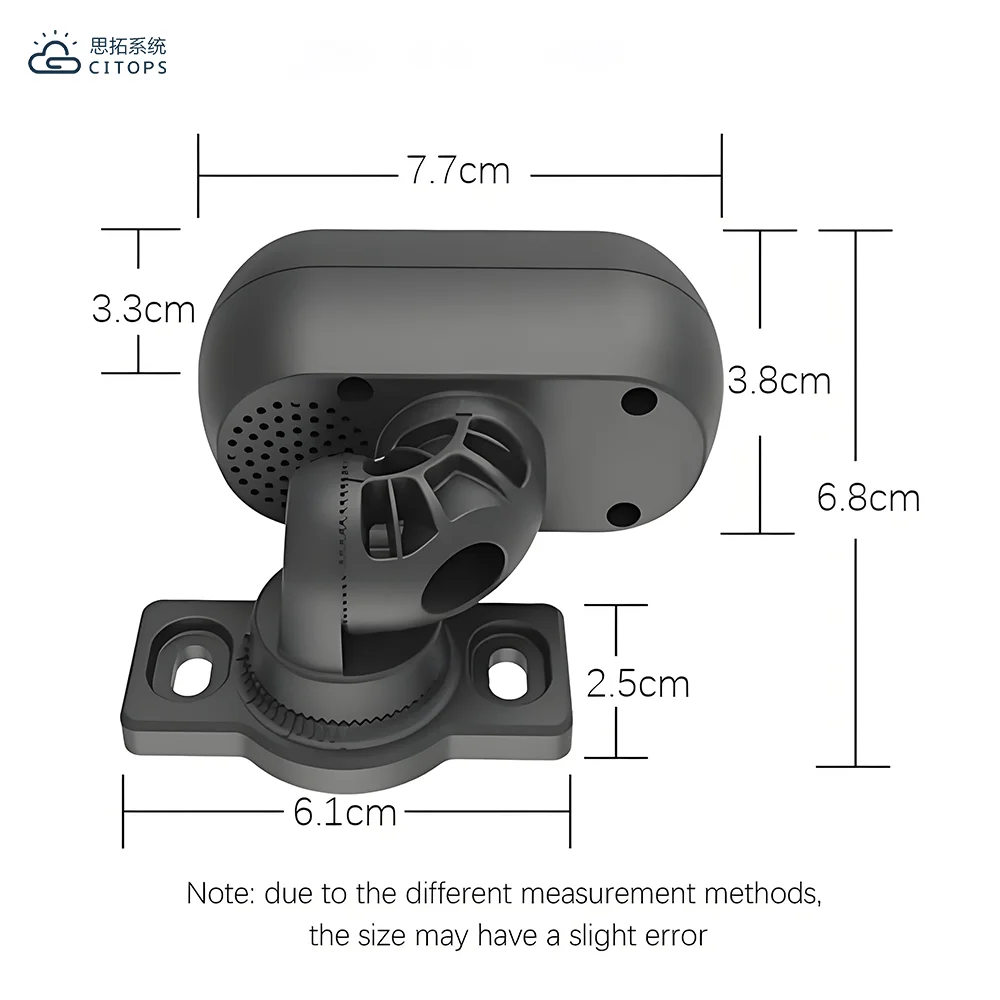

Dimensions |
83mm×68mm×55mm |
Details Images
Company Profile
FAQ
Q1: What is the MOQ?A: 1 piece for standard model; custom MOQ varies by request.Q2: What is the delivery time?A: 1-7 days for standard models; please contact us for customized orders.Q3: What warranty do you offer?A: 12-month warranty with lifetime technical support.Q4: How is the product packaged?A: EPE inner box + protective outer carton, safe for export.Q5: Can I use it in cold/hot environments?A: Yes, operating range is -40°C to +70°C.Q6: Do you offer OEM/ODM service?A: Yes, OEM/ODM is supported for bulk and project-based needs.
Q7: Is this camera waterproof?A1: No, it is designed for in-cab installation and should be used in dry environments only.Q8: Can it be used with my existing MDVR system?A2: Yes, Don't have built-in algorithms, use it as a simple camera with MDVR.Q9: What languages does it support?A3: We offer multiple language versions, including English, Spanish, Russian, Arabic, etc.Q10: Does it support ADAS functions?A4: No, this model is focused solely on DMS driver behavior monitoring.
