Smart 4ch Video Recorder Mobile MDVR 4G GPS Vehicle Monitoring System H.265 Full HD 1080P Freight Port Fleet Management Solution
Boost Cargo Turnover · Reduce Port Congestion · Strengthen Operational Safety
- Overview
- Recommended Products
Pruduct Description
🚛Freight Port Vehicle Monitoring & Management System
Boost Cargo Turnover · Reduce Port Congestion · Strengthen Operational Safety
Our complete monitoring system is designed for high-capacity freight ports that operate under intense cargo turnover pressure.

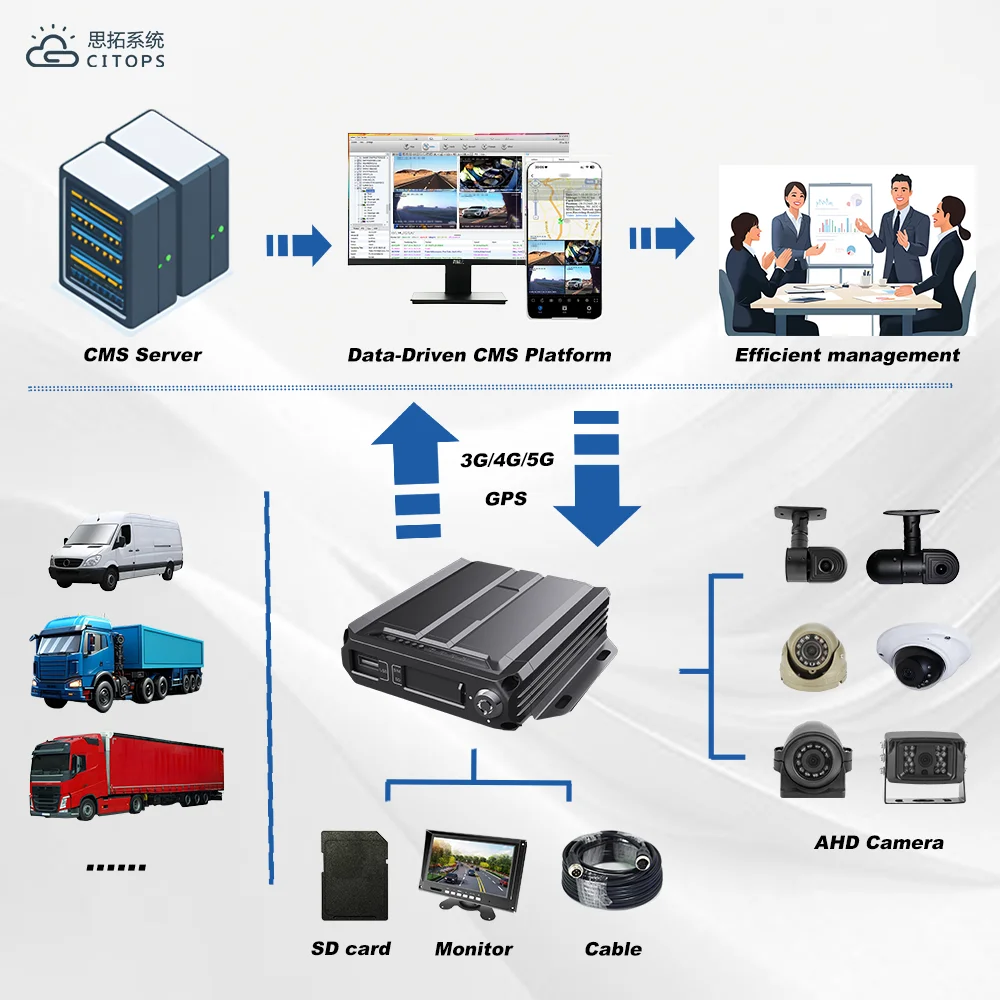

The system integrates MDVR host, 4ch 1080P AHD vehicle cameras, GPS/BD positioning, and a cloud management platform to deliver full-process visibility from gate entry to container dispatch.
It helps port operators reduce congestion, improve transport flow efficiency, and achieve measurable operational growth — proven by our customer case in South Africa, where efficiency increased by 30% after deployment.
Why Ports Choose Our Vehicle Monitoring System
Global freight ports manage high cargo volumes where every minute of delay brings real financial losses.Our solution offers full-process visual management for all port vehicles — trucks, trailers, forklifts, container movers, yard tractors — ensuring efficient movement and safe operation under demanding conditions.
Core Challenges Faced by Freight Ports
🔹 High cargo throughput with strict timing requirements
🔹 Traffic congestion inside terminal lanes
🔹 Inefficient dispatching and slow response to vehicle idleness
🔹 Lack of visual evidence for cargo disputes or accidents
🔹 Difficulty managing large fleets and driver behavior
Our system is built to solve exactly these issues.
🔹 Traffic congestion inside terminal lanes
🔹 Inefficient dispatching and slow response to vehicle idleness
🔹 Lack of visual evidence for cargo disputes or accidents
🔹 Difficulty managing large fleets and driver behavior
Our system is built to solve exactly these issues.
Key Features & Functional Advantages
✅ Real-Time Fleet Visibility
Manage all trucks, trailers, yard tractors, forklifts, and container movers in a unified platform.✅ Smart GPS Tracking & Route Control:
Dispatch teams gain clear, real-time location insight to manage high-volume daily trips with confidence.
Dispatch teams gain clear, real-time location insight to manage high-volume daily trips with confidence.
✅Optimized Route Planning
Prevent lane congestion and ensure faster entry/exit for loading and unloading.
Prevent lane congestion and ensure faster entry/exit for loading and unloading.
✅ Trusted by Leading Fleets:
Widely adopted by South African Freight Port Transporter, proving its reliability and effectiveness in improving safety and operations.
Widely adopted by South African Freight Port Transporter, proving its reliability and effectiveness in improving safety and operations.
✅ Driver Safety & Performance Monitoring:
Ensures every driver follows service protocols, reducing operational risks.
Ensures every driver follows service protocols, reducing operational risks.
✅ Evidence-Based Dispute Resolution
Video + GPS data helps handle cargo loss, collision, and forklift operation disputes instantly.
Video + GPS data helps handle cargo loss, collision, and forklift operation disputes instantly.
✅ Cloud-Based Multi-User Management
Different access levels for port authority, operators, contractors, and supervisors.
Different access levels for port authority, operators, contractors, and supervisors.
Product Paramenters
Item |
parameters |
||
Audio and Video Inputs |
Video input |
AHD：4ch 1080/30fps |
|
Audio input |
2ch audio input |
||
Audio and Video outputs |
Video output |
Default 1ch CVBS output (VGA output optional) |
|
Audio output |
1ch audio output |
||
Audio and video parameter coding |
video coding |
H.264 Main Profile/H.265 |
|
· Resolution |
1080P/720P/D1 optional |
||
audio coding |
default G.726,G.711A optional |
||
storage space |
SD card |
support 1 SD card, Max 1T |
|
wireless network |
4G wireless |
support 1 SIM card |
|
locate mode |
BD/GPS |
Positioning, speed detection, time synchronization |
|
Interface |
serial port |
Support 1 RS232, 1 RS485 can be external sensor |
|
I/O |
Support 4 level input, 1 output |
||
Physical Specifications |
Size |
102.8mm ( L ) *120mm ( W ) *32.23mm ( H ) |
|
Weight |
NW：0.6kg GW：0.8 kg（M15Hv-DGNE- L as a standard） |
||
work environment |
· operating Temperature |
-20〜+70℃ |
|
operating humidity |
8%〜90%（No condensation） |
||
Other |
operator schema |
Remote control |
|
· Gravity sensor |
Built in G-Sensor |
||
Application Scenarios
* Port Authority & Terminal Operation Center
—— Monitor cross-terminal activities and route flow.
* Container Transportation & Yard Handling
—— Track movement from gate entry to exit.
* Forklifts, Cranes, Straddle Carriers
—— Improve safety and reduce collision risk.
* Logistics Contractors
—— Enhance task compliance and cargo delivery accuracy.
* Insurance & Safety Departments
—— Provide evidence and minimize dispute handling time.
—— Provide evidence and minimize dispute handling time.
Details Images
Company Profile
FAQ
Q1: How does the system prevent accidents?
A: The system continuously monitors driver behavior and vehicle conditions. It provides alerts in case of risky driving or mechanical issues, reducing the chance of accidents.
Q2: Is the system easy to install and integrate?
A: Yes, the system is easy to install and integrates seamlessly with your fleet’s existing infrastructure.
Q3: Does the system help reduce disputes or insurance issues?
A: Yes. Full-trip video + GPS evidence provides reliable proof during medical disputes, service complaints, or insurance cases.
Q4:Can it integrate with our existing dispatching system?
A: Yes, we offer API integration to connect your current dispatching or fleet platform.
Q5: What is the storage capacity for video footage?
A: The system supports up to 1T SD storage, ensuring that you can store significant amounts of footage for future reference.
Q6: Do you support OEM/ODM customization?
A:Yes. We provide system customization, logo printing, software UI customization, and tailored solutions for large fleets.
Q7: What is your warranty policy?
A:Standard 18-month warranty. Quick replacement or repair is provided for any quality issues.
Q8: Can this system integrate with fleet management platforms?
A:Yes,we support CMS platforms or custom server integration. Contact us for compatible solutions.
