360 Degree Waterproof Car Security MDVR System Network Magnetic Dome Camera Multi-Functional Pan-Tilt Vehicle Mounted PTZ Camera
This 360-degree waterproof Car Security MDVR System features a network magnetic dome PTZ Camera. It offers all-weather use and pan-tilt capabilities for comprehensive surveillance. Easy to install on various vehicles, it ensures all-around safety.
- Overview
- Recommended Products
Pruduct Description
Car Roof Mounted Mdvr PTZ Camera System
Features :
This combination is highly effective in applications such as public transportation, logistics, and law enforcement vehicles, enhancing security, surveillance efficiency, and emergency response capabilities.
* Real-time Monitoring and Remote Control: Allows remote control of camera functions like pan, tilt, and zoom, providing dynamic tracking capabilities via the MDVR's wireless network.
* Comprehensive Coverage: Provides 360-degree surveillance of vehicle interiors and exteriors, covering blind spots and enhancing security.
* Event Recording and Analysis: Captures high-resolution video for post-event analysis, aiding in incident investigation.
* Automated Patrol: Supports preset patrol routes, enabling automated surveillance of specific areas without manual intervention.
* Remote Alarm Integration: Works with sensors to trigger alarms and allows immediate remote viewing for rapid response.
* Robust Data Management: Offers reliable long-term storage and management of high-quality video data.
* Durability: Designed to operate in harsh environments, ensuring stable performance under extreme conditions.
* High scalability:The PTZ camera and MDVR system can add addition cameras and sensors as needed, with expansion interfaces allowing easy future upgrades.
* Comprehensive Coverage: Provides 360-degree surveillance of vehicle interiors and exteriors, covering blind spots and enhancing security.
* Event Recording and Analysis: Captures high-resolution video for post-event analysis, aiding in incident investigation.
* Automated Patrol: Supports preset patrol routes, enabling automated surveillance of specific areas without manual intervention.
* Remote Alarm Integration: Works with sensors to trigger alarms and allows immediate remote viewing for rapid response.
* Robust Data Management: Offers reliable long-term storage and management of high-quality video data.
* Durability: Designed to operate in harsh environments, ensuring stable performance under extreme conditions.
* High scalability:The PTZ camera and MDVR system can add addition cameras and sensors as needed, with expansion interfaces allowing easy future upgrades.
This combination is highly effective in applications such as public transportation, logistics, and law enforcement vehicles, enhancing security, surveillance efficiency, and emergency response capabilities.
Product Technical Data
PTZ Camera Function |
||
Pan preset speed |
300°/s |
|
Tilt preset speed |
120°/s |
|
Pan control speed |
0°~220°/S |
|
Tilt control speed |
0°~90°/S |
|
Pan range |
360°endless rotation |
|
Tilt range |
-20° ~ +90° |
|
Preset positions、Tracking |
256 positions 6 tracking |
|
Control Way |
RS485, Built-in 16 protocol, Baud Rate from 2400Bps to 19200Bps optional |
|
Relative Humidity |
Less than 90% |
|

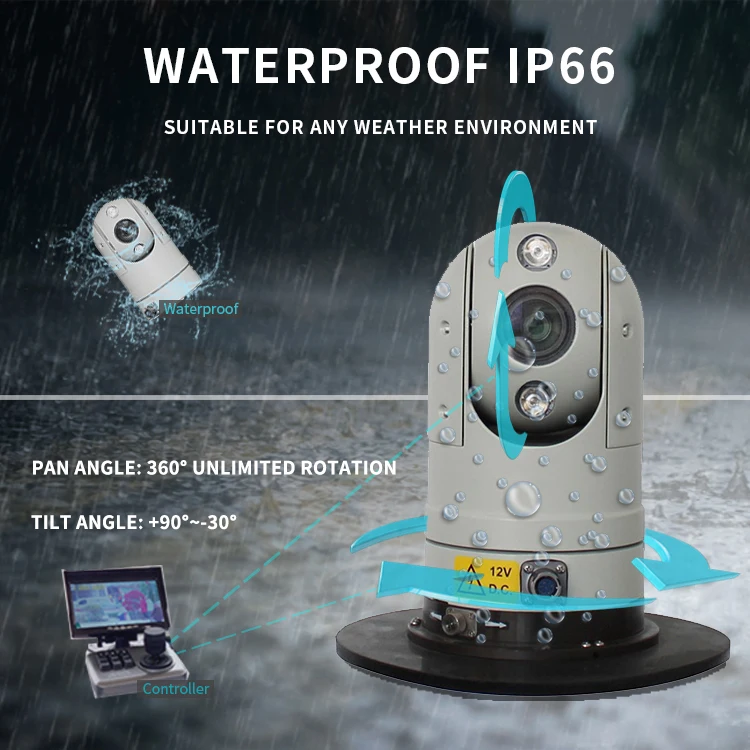

IP Grade |
IP66 |
|
Working Temperature |
-35° ~ +55° |
|
Impact resistance requirements |
≥4G |
|
Wiper |
Support |
|

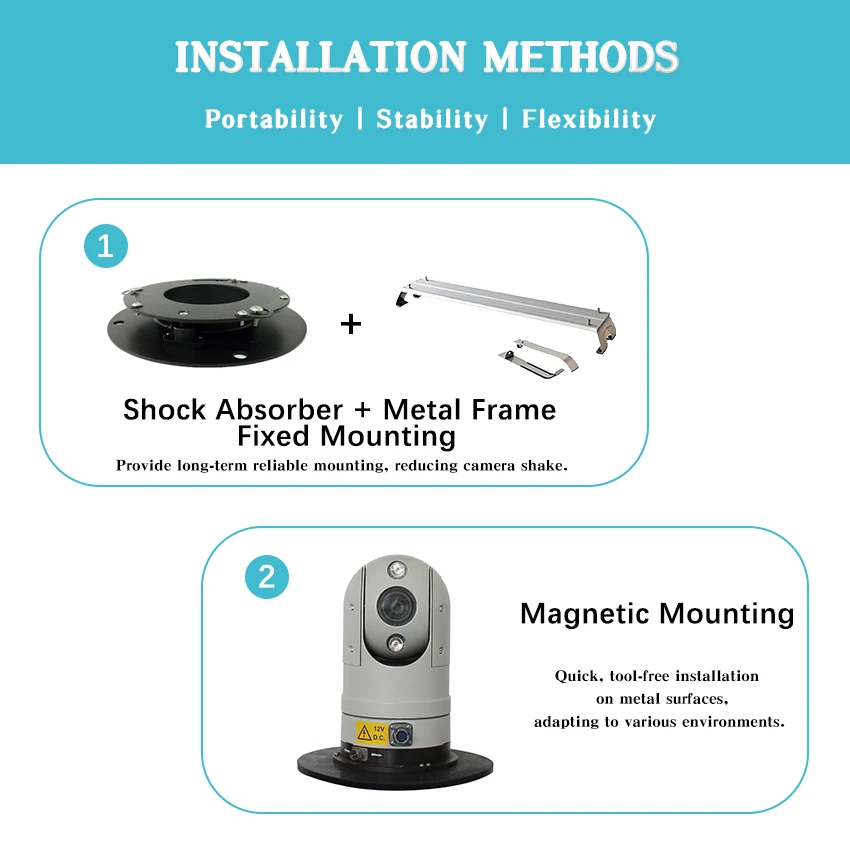

Installation |
Variety of installation according to the environment |
|
Weight |
2.5kg |
|
MDVR Host Function |
||
Video Input/Output |
AHD：4ch 1080/25fps IPC：Scalable 1-4ch Default 1ch CVBS output (VGA output optional)
|
|
Audio Input/ Output |
4ch audio input/1ch audio output |
|
Video Coding |
H.264 Main Profile/H.265 |
|
Resolution |
1080P/720P/D1 optional |
|
Storage |
1*2.5-inch optional: SSD/HDD+1*SD card (Max 2T+512GB) |
|
4G/GPS/BD/WIFI |
Support optional |
|
Size |
176.9mm（L）*186.8mm（W）*54mm（H） |
|
Weight |
NW：1.4kg GW：2kg（M51Hv-DGNE1-L as a standard） |
|
Other interface |
Support 1*USB2.0,2*RS232, 1*RS485,I/O,external IPC,1*special intercom |
|
Online Platform |
CMSV6/7/9(support remote control、APP、WEB ) |
|
Configurable AI algorithms |
Face recognition 、People Counting、ADAS+DMS (Contact us) |
|
